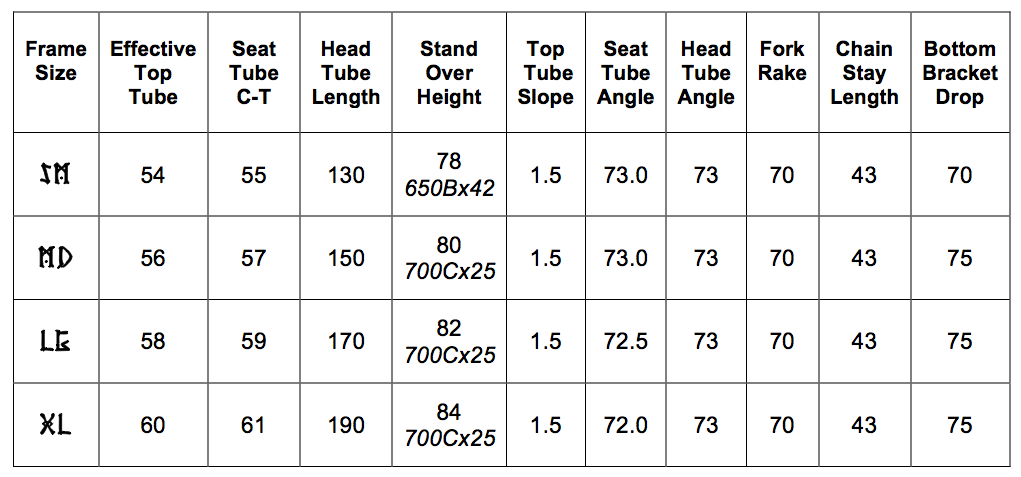

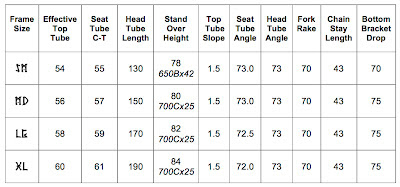

Nordavinden Geometry And Specifications



Click to embiggen.



Tubing, All Sizes
-  Rawland Staal double butted CrMo
-  25.4 7/4/7 heat-treated top tube
-  28.6 8/5/8 non-treated down tube
-  28.6 non-treated seat tube

Frame Features
-  68mm English thread bottom bracket
-  27.2mm seatpost diameter
-  28.6mm front dérailleur clamp
-  130mm rear spacing
-  55mm brake reach
-  Stainless steel dropouts
-  Fender eyelets and mounts
-  Double water bottle mounts
-  Star reinforcements
-  Head tube reinforcements
-  Down tube shifter bosses
-  Split brake cable stops at 7 o'clock
-  Head tube frame pump peg
-  Seat stay chain hanger

Fork Features
-  Pacenti Artisan II crown
-  1-1/8" steerer
-  55mm brake reach
-  Mid-point rack mounts
-  Fender eyelets
-  Stainless steel dropouts
-  Low and graceful bend

Others
-  Ice Blue color
-  High-quality packaging
-  Metal Rawland head tube badge applied
-  Rawland seat post clamp installed
-  Cable guide installed
-  Rawland chain stay protector applied
-  Five stainless steel mount bolts installed
-  Tire clearance for up to 42mm (SM); 35c (MD, LG and XL)
-  Five-year frame and fork warranty on manufacturing defects for the original owner only
